Managed pressure drilling meets challenges of deepwater well

A managed pressure drilling system, used in conjunction with a continuous circulating device to control wellbore pressure, helped an international E&P company successfully drill a difficult section of an deepwater exploration well in Ghana, West Africa, in 2012. The operator and service company Weatherford implemented the MicroFlux MPD Control System, a closed-loop system that enables accurate detection and effective management of minute fluid influxes in challenging wellbores.

Wft2b 1404off

Essam Sammat
Weatherford

Prolific deepwater frontiers hold a wealth of opportunity for oil and gas recovery. But as E&P companies ramp up drilling activity in these promising fields, they are encountering challenges that drive up costs, non-productive time, and risk. Inherently unstable wellbores prone to pore-pressure changes and the possibility of the well to pack-off in often remote reservoirs are among the issues.

West Africa is an important deepwater market where high drilling costs are ushering in advanced methods, such as managed pressure drilling (MPD), that are changing the way wells are drilled. MPD, the technique of maintaining and controlling bottomhole pressure using surface equipment, has been a game-changer in the industry's ability to access deepwater and ultra-deepwater reservoirs. These environments typically present narrow drilling windows, caused by the combined pressure of the water and sediment.

MPD technology, which can be deployed from semisubmersible rigs and drillships, facilitates the monitoring of downhole conditions much more precisely than conventional equipment. By detecting influxes early, MPD systems help offshore operators prevent dangerous and costly well control events or well shut-in.

An MPD system, used in conjunction with a continuous circulating device to control wellbore pressure, helped an international E&P company successfully drill a difficult section of an exploratorydeepwater well in Ghana, West Africa, in 2012. The two-month project, which involved extensive pre-job planning, enabled the operator to achieve well objectives, drill deeper than planned, and save considerable cost and time.

Wft2b 1404off

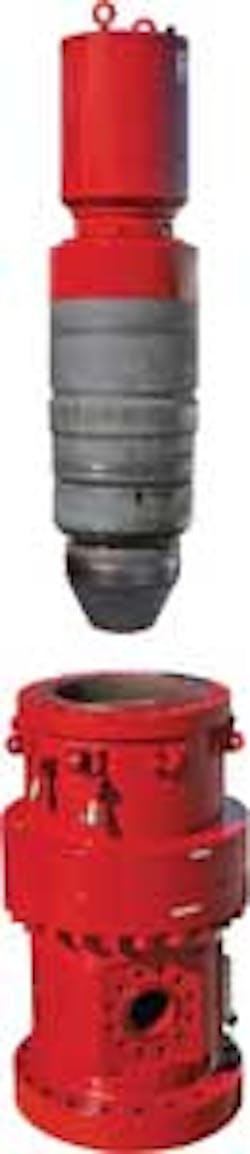

A key component for any MPD system, this model of the rotating control device (RCD) is purpose-built for offshore applications.

The decision to deploy MPD in this case followed an unsuccessful 2008 drilling campaign in a nearby offset well that presented an unstable zone and sharp changes in pore pressures. While drilling the 12¼-in. section, the operator observed constant blocky shale cuttings at the surface, later determined to be the result of a rubble zone in the section.

The conventionally drilled well packed off several times as the shale sloughed around the bottomhole assembly (BHA), preventing circulation. After each pack-off event, the BHA had to be pulled up to where the wellbore was consistently stable. The operator eventually decided to plug the main wellbore and drill a side track to penetrate the rubble zone from a distance, using a higher mud weight to prevent the unstable zone from sloughing.

The side track encountered less resistance and sloughing until a significant drilling break occurred. Both the main wellbore and the side track became permanently plugged, preventing the operator from reaching target depth. The well, which encountered a gas/water influx of 16-20 bbl, leading to shut-in, was permanently abandoned at the 12¼-in. section.

The exploratory well, located 1,312 ft (400 m) from the offset well in water depth of 5,500 ft (1,675 m) and 65 nautical miles (75 miles) from shore, was to obtain full reservoir evaluation to determine the commercial viability of the well. Based on the difficulties in the offset well, the operator and service company Weatherford implemented the MicroFlux MPD Control System, a closed-loop system that enables accurate detection and effective management of minute fluid influxes in challenging wellbores. An auto-control feature applies corrective actions to restore mass balance and provide faster response times.

Wft1 1404off
The managed pressure drilling (MPD) installation implemented on the semisubmersible rig offshore Ghana. (All images courtesy Weatherford)

MPD installed

The MPD operation was deployed from the deepwater semisubmersible rigTransocean Marianas. The well design dictated that the MPD system would be positioned at the top of the marine riser, which included a rotating control device (RCD) and an MPD choke manifold system so the drilling operation could be conducted with surface pressure. The choke manifold also serves as an advanced kick detection system. A real-time flow meter, installed downstream of the choke, detects smaller influx volumes compared to conventional equipment. By detecting kicks early and minimizing the size of the kick, the system enhances operational safety.

A key enabler for any MPD system, whether on land or offshore, is the RCD, used in a mud-return system to contain annular fluids while drilling. On floating rigs, an RCD can be installed either below or above the tension ring configuration, a decision often dictated by weather and sea conditions. It is important that the RCD remain static on the riser so that any rig movement does not cause pressure changes in the wellbore annulus, which may result in inaccurate flow measurement by the MPD system and make detection of kicks, losses, and ballooning considerably more difficult.

Installing the device below the tension ring configuration allows the rig to maintain use of the existing telescopic riser joint, or slip joint, to achieve maximum stroke and compensate for rig movement in harsher sea conditions. Installing the RCD above the tension ring configuration prevents the main rig telescopic joint from being used, therefore requiring a shorter telescopic joint above the RCD to compensate for rig movement or heaving.

In this case, because sea conditions in the region are calm, the SeaShield RCD was installed above the tension ring configuration to create a closed-loop system whereby the active returns flow could be diverted below the RCD and avoid the rig's conventional return flowline. A telescopic joint was retained to optimize alignment of the rig/drill pipe with the RCD/riser, reducing excessive wearing of the RCD element.

Additional equipment installed in the riser below the RCD included an annular preventer, or riser annular, and a flow spool, which enables the RCD sealing elements to be changed while circulation keeps pressure on the well. The riser annular eliminates the need to use and strip drill pipe through the rig's subsea annular preventer. When the RCD sealing elements need replacing, the riser annular closes around the drill pipe, sealing the annulus pressure below the RCD.

Wft3 1404off
Click to Enlarge
The well control matrix aids fast decision making during critical operations to produce a rapid well control response.

For this operation, the addition of the circulation system enabled continuous downhole circulation while making up or breaking out drill pipe connections. The circulating device is a dual-valve sub made up in the drillstring to allow continuous circulation of the drilling fluid into the well for improved performance. Constant circulation during drill pipe connection maintains the downhole cooling effect on the BHA element, extending the life of the electronics. Downhole parameters, such as equivalent circulating density (ECD), temperature, and tool status, also are continuously transmitted in real time. In the event of an emergency well control situation, where the integrity of the drillstring may be compromised, the circulating device sub also serves as a backpressure/check valve in the string, preventing uncontrolled flowback from the drill pipe.
