Source control operation effectively contains blowout

During drilling operations on a platform, a kick occurred after encountering an unexpected abnormal pressure formation.

1612offwell P01

Caspian Sea well capped with custom-configured tree

Douglas Derr • Carl J. Cramm • John B. Garner

Halliburton-Boots & Coots

During drilling operations on a platform, a kick occurred after encountering an unexpected abnormal pressure formation. While circulating out the kick, a leak developed on the BOP stack, which then ignited. The platform was safely evacuated without any injuries, but the fire eventually degraded the structural integrity of the platform, causing it to partially collapse. Bottomhole pressure was approximately 18,000 psi, and the bottomhole temperature was near 215°F (102°C).

On closer inspection of the platform, multiple leaks had developed from the flanges below the BOP due to the collapse of the platform onto the stack. The height of the flame reached 320 ft (98 m). The heat-affected superstructure had collapsed and scattered debris all over the platform. The spontaneous decision was to drill a relief well; however, severe weather conditions imposed a six-month delay on mobilizing an appropriate rig for drilling a relief well. A subsequent risk analysis was performed to evaluate the feasibility of performing source control to cap and contain the well on the platform.

1612offwell P01

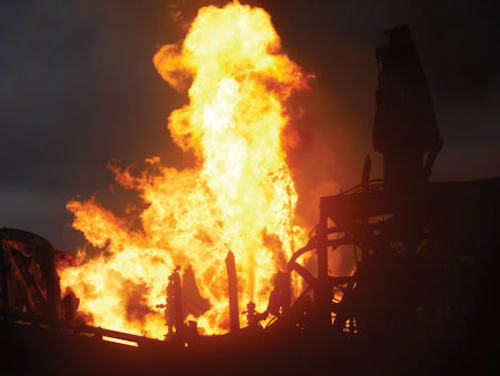

A fire engulfs an offshore platform in the Caspian Sea. (All photos courtesy Halliburton)

A detailed analysis indicated severe damage to 25 to 30% of the platform structure. Considering the structure of the platform, multiple safe routes for boarding the platform and emergency evacuation plans were established. Major safety and health hazards were identified by the health, safety, and environment (HSE) team, and proper procedures were developed to eliminate or mitigate risks.

In order to mitigate heat damage to the structure of the platform and to the equipment, two firefighting boats continuously sprayed water on the platform and equipment. Several firefighting pumps and fire monitors were positioned on the platform to support the source control operation. Had the platform been lost altogether, the only option would have been to drill a relief well. Therefore, it was absolutely crucial to prevent further damage to the structural integrity of the platform while properly removing debris.

1612offwell P03
Two firefighting boats continuously sprayed water in order to mitigate heat damage to the structure of the platform and to the equipment.

Following all safety precautions and protocols, the well control crew boarded the platform to clear debris and gain access to the wellhead. The primary objective of the daily operation was to eliminate or mitigate safety hazards to as low a degree as practically possible.

The platform clearing operation was supported by a barge crane to lift and collect debris. The position of firefighting boats and fire monitors on the platform were adjusted based on the ongoing activity to provide support for the operation. The presence of high salt content in the water and winds necessitated special considerations for protecting pumps, electronics, and control panels to ensure reliable and continuous operation.

1612offwell P02
Jet cutting operations were employed to remove the damaged BOP stack.

After removing debris and gaining access to the wellhead, the damaged sections were replaced and decking was erected for the jet-cutting and capping operations. A practice jet-cutting operation was performed onshore on a similar 18¾-in., 10,000-psi wellhead with 8½-in. thick forged steel. Well control experts carefully examined the progress of the jet-cutting operation for the cut on the platform wellheads. The jet-cutting operation on the platform was performed flawlessly and the stack was removed, resulting in a vertical flow of hydrocarbons over which a Venturi tube was lowered as added protection.

After the jet-cutting operation, damaged spools and flanges were removed from the remainder of the stack and the well was capped with a custom configuration tree. There was a concern that heat and flow damage could occur to the sealing elements, and, therefore, the wells were not shut in. Instead, the flow from the well was diverted to a pipeline while other efforts for securing the well were under way.

1612offwell P04
A crane barge was deployed to help the well control team with the removal of debris from the platform facility.

In the absence of an immediate option for drilling a relief well, source control provided the only viable option for containing the well safely for the operator. Detailed safety and hazard analysis significantly reduced the risks associated with source control operations on the platform, and, after capping and diverting the flow to a pipeline, the environmental hazards and pollution were eliminated, providing a safe environment for continuing source control operations on the platform.

The total length of the source control operations from the start to the capping operation lasted 49 days, with 40% nonproductive time attributed to severe weather conditions. Notwithstanding these delays, the Boots & Coots team was able to successfully complete these operations, saving the customer loss of production and the cost of drilling a relief well. In the absence of an immediate option for drilling a relief well, source control provided the only viable option for containing the well safely for the operator.

The above case study provided an excellent example of the benefits of using source control for well control events. The lessons learned from this effort can be summarized as follows:

  • Detailed safety and hazard analysis can help significantly reduce risk associated with source control on marine platforms and fixed structures. Hazard analysis should include the integrity of the structure and procedures to safely evacuate the location. Safety concerns can impose substantial but necessary NPT during the operation. All companies and agencies involved in the operation should be briefed on the situation and be alerted at all times.
  • Source control can provide options for containing flow from the well before relief wells are used to intercept the target well. Therefore, environmental damage and resources can be minimized. After the target well is secured properly, the relief well can be repurposed and completed.
  • After capping the well, and while preparing a kill operation, flow can be safely diverted away from the crew or be transported through available pipelines. Additional construction might be necessary for connecting the diverter line to a pipeline.
  • Source control activities can remove debris and direct the flame in a vertical direction, helping reduce dispersion of gas and heat intensity around the platform.
  • Also, by controlling the direction of the flame and pumping water curtain, source control activities can help mitigate additional damage caused by heat stress to the structure of the platform. If the platform fails, the extent of the spill control would be more extensive and environmental damage would be more severe.
