SUBSEA TECHONOLOGY: Mooring drilling and production units without conventional winches, fairleads

Add a mooring line - quickly!

Th 80640

A method of mooring mobile drilling units and permanent production vessels with-out the aid of conventional winches and fairleads has been developed by CSO Aker Marine Contractors (Houston) in conjunction with BP. The method is being applied now as a backup system to a dynamically positioned (DP) drilling unit in the Gulf of Mexico, which is operating in relatively shallow water. However, the system has wider applic-ations. For example, it will allow:

  • Existing rigs to survive higher design conditions by simply installing additional moor- ing legs.
  • The mooring of permanent floating prod-uction facilities at a much lower cost.

Th 80640

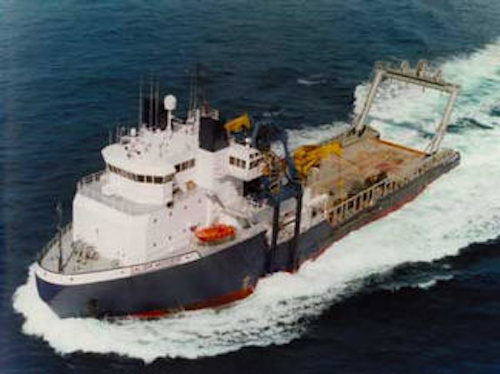

The AHV M/V Dove.
Click here to enlarge image

The backup application, which was the first use of the 'winchless' mooring system, became available when a new generation DP rig, in this case Transocean Sedco Forex's Deepwater Horizon, became available to BP to drill a well in 2,400 ft water depth. This water depth is shallower than the normal design depth for DP rigs, and the Deepwater Horizon was not equipped with mooring winches. The rig is working in Mississippi Canyon Block 587 (Blues Image prospect).

The problem for the DP unit in this case is that in the event the riser needed to be disconnected from the guidebase, there might not be sufficient time to do so. Severe storms, drive-offs, and drift-offs are all conditions that require a fairly rapid disconnection. The limiting excursion for the rig for such events in this water depth is about 240 ft.

Th 80641
The installation platform from which the spider baskets were lowered to enable the PHA to be welded to the columns.
Click here to enlarge image

This first application of the technology involved a four-line semi-taut mooring system, using about 8,000 ft of 3.5-in. diameter wire for each line, and about 750-850 ft of 3.25-in. K4 ground chain on each end of the wire, connecting the drilling unit and the anchor. Peter Dove, Sr. Vice President of CSO Aker Marine Contractors, said the system is designed to keep the rig in a watch circle of less than 6% of water depth in a 10-year winter storm. Since the rig is being moored in 2,400 ft water depth, this would mean a maximum excursion of 144 ft.

Mooring configuration

Other devices, some created especially for this project in a short period of time, were employed on the Deepwater Horizon mooring system:

  • SEPLAs: Dove said the anchor system precision required the use of SEPLAs (suction embedded plate anchors) on the seafloor to keep the vessel within the watch circle during storms. Ordinary suction anchors were considered, Dove said, but the ease of installation and recovery combined with the savings in cost made them a more desirable option.
  • Special Release Hooks: The need for quick and easy disconnection of the mooring lines from the drilling unit lead to the selection of Pelican Hook Appurtenances (PHA), which provided the needed toughness with rapid disconnection. The PHAs were welded to the columns. Dove said the drilling unit had been built with the idea that mooring might be added in the future, so the lower column structure was enhanced for fairlead additions.
  • PHA release: The PHA units on each column can release the mooring lines with a release wire at the deck level, a device designed by CSO Aker Marine Contractors. The device consists of a release wire attached to the PHA keeper. Dove said the wire is secured on deck by a release skid, which includes a bending shoe and a hydraulic cylinder attached to a padeye. A power pack tensions the release wire, severing a shear pin holding the PHA hook keeper, and the mooring line is released.
  • Mooring tensioning: Rather than tensioning each of the mooring lines from the drilling unit, it was necessary to apply tensions in the mooring lines using the main winch of an anchor handling vessel (AHV). While several AHVs in the Gulf of Mexico have sufficient winch capacity, only the AHV M/V Dove has the stern configuration to enable this operation to be completed.

Installation

The fairlead foundation on the Deepwater Horizon are cantilevered outboard of the columns a distance of 20 ft and are positioned just above the water line, about 80 ft below the deck level. The PHAs, release mechanisms, and other rig-associated devices were installed by CSO Aker Marine Contractors on the drilling unit during commissioning of the rig in the Gulf of Mexico in late August.

Th 80642
Top view of the open Pelican Hook Appurten-ances before connection.
Click here to enlarge image

To enable the PHA installation, platforms were installed at the top of each column. Dove said that spider baskets lowered from the platform allowed welding of the PHAs to the lower columns.

The four mooring lines and SEPLA anchors were installed by the anchor handling units (AHVs) Edison Chouest and Seacor Vanguard. The M/V Dove was used to attach the four mooring lines to the rig and tension each of the lines. The latter involved picking up the PHA pendant and mooring chain from the drilling unit, and pulling in the anchor wire from the opposite direction. The process of tensioning with two such lines is known as cross-tensioning.
