John Deere Power Systems has introduced the 4045SFM85 marine engine. The new 4.5L engine offers high power to weight ratio for repowering and new boat construction, and is ideal for planing and semi-displacement hulls.

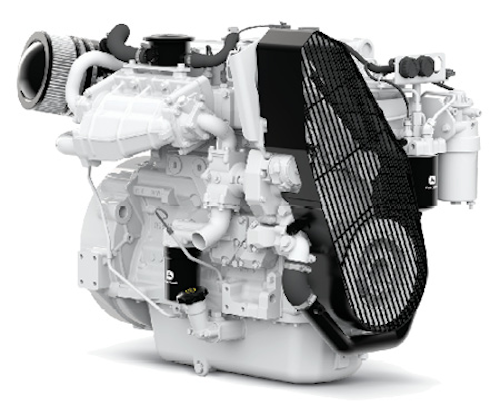

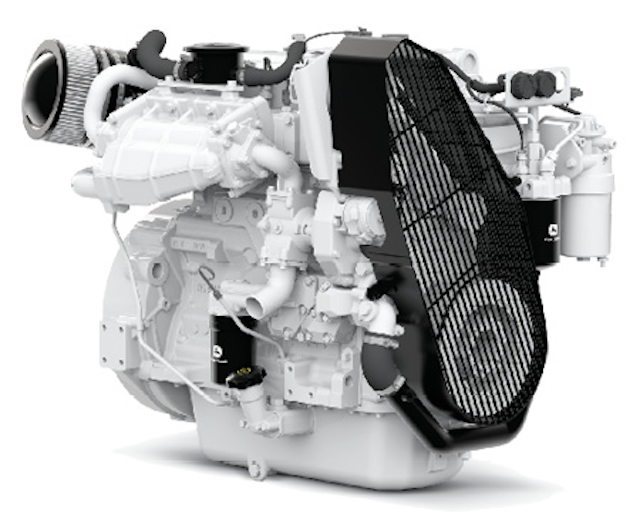

The PowerTech 4045SFM85 engine will be available for order in early 2018. (Image courtesy John Deere Power Systems)
The new PowerTech 4045SFM85 has two ratings for light-duty commercial vessels, high-speed governmental applications and high-speed pleasure craft, which includes an M4 rating with 205 kW (275 hp) at 2,600 rpm and M5 rating with 235 kW (315 hp) at 2,800 rpm.
The new engine ratings join the existing lineup of John Deere Marine Tier 3 propulsion engines. The 4045SFM85 ratings will meet US Environmental Protection Agency Marine Tier 3 and Recreational Craft Directive II emissions regulations, as well as International Maritime Organization Tier II standards for commercial and recreational applications. The engine is pending approval by American Bureau of Shipping, DNV GL, Lloyd’s Register, and Bureau Veritas. Also, it will be the only ABS-certified, 315 hp, 4-cylinder in-board diesel engine.
“We’re excited to offer type approvals for this power range in the near future,” said Heather Balk, marine market planner for John Deere Power Systems. “Type approvals offer piece of mind to boat owners that this new engine from John Deere will pass marine authority safety tests and design reviews.”
The engine uses a waste-gated turbocharger that provides more torque capability at the low and middle rpm range, which is most notable during vessel acceleration, and features replaceable cylinder liners, making it possible to rebuild the engine for extended service life.
Additional features of the 4045SFM85 engine include:
• Standard front fuel service, optional left-hand or right-hand oil filter options for twin engine applications
• Upgraded valve train. It delivers a 40% increase in power and a 9% reduction in total engine weight for a 53% increase in power density compared to the 4045AFM85
• The low-profile heat exchanger reduces overall height by 1.7 in. from the 4045AFM85
• Water-cooled exhaust manifold creates a cooler and quieter environment for both passengers and crew.
