Halliburton introduces latest rotating control device

Halliburton has released the Marine Sentry 3000, a rotating control device that provides a pressure control solution by creating a seal around the drillstring and tool joints for safer containment of fluids during conventional or controlled pressure drilling.

Content Dam Os En Articles Print Volume 77 Issue 12 Equipment Engineering Halliburton Introduces Latest Rotating Control Device Leftcolumn Article Thumbnailimage File

Halliburton has released the Marine Sentry 3000, a rotating control device that provides a pressure control solution by creating a seal around the drillstring and tool joints for safer containment of fluids during conventional or controlled pressure drilling.

1712offhall P01

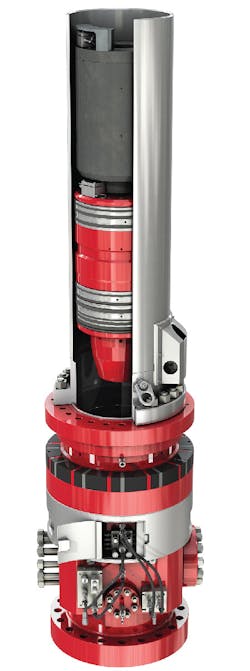

The Marine Sentry 3000 is rated to 3,000 psi static pressure and 2,000 psi dynamic pressure. (Images courtesy Halliburton)

“The introduction of Marine Sentry 3000 allows Halliburton to extend its portfolio of managed pressure drilling tools that are designed to improve safety and efficiency in offshore operations,” said Grant Roscoe, vice president of Halliburton Testing & Subsea. “We worked closely with our customers to design a system that provides seamless integration with their existing rig equipment to help reduce costs and non-productive time.”

The device is mounted on a rig’s surface blowout preventer and monitors key functions to help reduce cost and environmental impact while improving overall well safety in pressure critical locations. The rotating control device is equipped with remote latching for secure equipment function that eliminates manual operation and provides wireless monitoring of bearing revolution per minute, pressure and temperature controls data. It also includes a visual workstation to display all critical information to help prevent accidental unlatch of the bearing system.

Operators can deploy the device in many applications including managed pressure or underbalanced drilling, shallow gas, and abnormally pressured formations in extended-reach horizontal and ultra-deep vertical wells. It is rated to 3,000 psi static pressure and 2,000 psi dynamic pressure to help provide increased reliability and tight control of drilling fluids to meet safety standards.

1712offhall P02

The rotating control device helps provide increased reliability and tight control of dr

An operator recently asked Halliburton to provide an integrated solution to safely and efficiently drill a reentry well in a Gulf of Mexico field that presented several challenges and risks due to narrow-pressure drilling windows. “Marine Sentry 3000 provided the closed drilling loop for the MPD system to mitigate risks allowing the operator to safely execute the program with no non-productive time,” said Derrick Lewis, strategic business manager of Halliburton Testing and Subsea GeoBalance Applications.
