UNDER-BALANCED DRILLING: UBD foam use relies on fluid stability, control of bottomhole pressure

JIP to design model based on studies

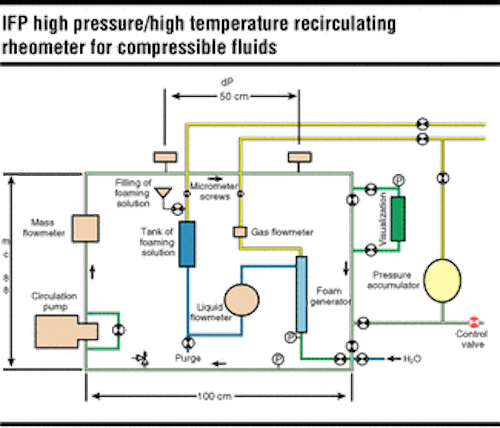

Th 67286

Under-balanced drilling (UBD) is a technique whereby the equivalent circulating densities (ECD) of the drilling fluid in the annulus is intentionally maintained at a value inferior to the formation pressure. This corresponds to a fluid density generally lower than 0.8. Drilling under-balanced provides numerous advantages, including:

  • Prevention of formation damage
  • Increased rate of penetration
  • Minimization of lost circulation
  • Production while drilling.

Th 67286
Click here to enlarge image

Under-balanced drilling is particularly applicable in depleted or heavy loss formations or to recover mature wells. One of the main difficulties of UBD is maintaining constantly under-balanced conditions. The whole operation can be compromised if UDB cannot be achieved throughout all the drilling and completion phases.

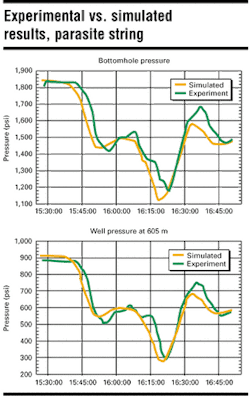

Th 67287
Click here to enlarge image

In some cases, permeability impairments due to the penetration of under-balanced fluid during a short overbalanced period can lead to even worse results than if a conventional over-balanced operation with a correctly designed fluid had been used.

Fluid conditions

Low density fluids, such as air, aerated muds, or foams are typically used to obtain under-balanced conditions. Among these different fluids, foam is very beneficial due to advantages such as handling of water influx, low density, very good hole cleaning, and cuttings carrying capacity. But knowledge of foam properties under bottomhole conditions is very poor. Two main difficulties arise when drilling with foams:

  • First is the need to understand and control foam's stability properties. Foam is a thermodynamically unstable system and could be destabilized by formation fluids (such as electrolytes or hydrocarbons), by solids, or by downhole conditions (HP/HT). Foam disposal and handling on the surface, whether onshore or offshore, constitutes a challenge as well. Foam must be stable once in the well, but after its use, it should break up quickly to facilitate easy disposal.
  • The second difficulty is the necessity to control downhole pressure while drilling. Modeling compressible flows of a fluid of complex rheology thereby becomes necessary to provide good engineering tools for under-balanced operations.

Modeling permanent flow

The main objective of current work by the Institut Francais du Petrole (IFP) is to provide the industry with a model for permanent flow of under-balanced fluids, such as foams, taking into account all the specific physico-chemical properties of these fluids.

As a first step, IFP and Rogaland propose to the industry a joint industry project focused on the properties of foam fluids and on the development of engineering tools to monitor their behavior in under-balanced drilling conditions. The project will be divided into three main phases:

  • Development of a DynaFlowDrill module for foam based on an experimentally validated rheology model
  • Upgrade of this module with a dynamic stability and rheological model, followed by validation of the model with field data.
  • Another phase will be proposed in order to evaluate and control the risks of formation damage when drilling with foams. For this, specific experiments on real cores will be performed.

Existing flow models often have limitations due to lack of knowledge of the fluids concerned. For instance, foam rheology and its variation with drilling conditions are often simplified.

This will be investigated using a novel experimental setup, including a P and T flow loop, a transparent visualization cell, and an influx derivation. The aim of this project is to couple good knowledge on foam specific properties and an existing model for under-balanced drilling pressure prediction, taking into account the relevant rheology and influx from the reservoir, in order to model accurately the flowing of foamed under-balanced fluids.
