New CFD simulation solution proves cost-effective for predicting wind loads

Computational fluid dynamics (CFD) simulations of offshore oil and gas platforms are used to predict the maximum wind loads acting on the structure of the platform topsides. This includes the upper half of the platform, above sea level and outside the splash zone, as well as the oil production plant, the accommodation block, and any drilling equipment. Wind loads can be significant in specific ocean areas; and these metrics must be taken into account when designing the mooring of the structure, just as wave and current loads are.

Content Dam Offshore Print Articles Volume 77 03 1703offcfd P01

R&D project delivers industrially feasible platform topsides analysis

Daniel Barcarolo

HydrOcean

Computational fluid dynamics (CFD) simulations of offshore oil and gas platforms are used to predict the maximum wind loads acting on the structure of the platform topsides. This includes the upper half of the platform, above sea level and outside the splash zone, as well as the oil production plant, the accommodation block, and any drilling equipment.

Wind loads can be significant in specific ocean areas; and these metrics must be taken into account when designing the mooring of the structure, just as wave and current loads are. Because platform topsides geometries were traditionally considered too complex to mesh in high detail, CFD simulations relied on simplified, de-featured models. Their low fidelity meant that, when CFD was used, the results needed to be validated and refined through expensive, labor-intensive fabrication and testing of physical models in wind tunnels.

But a recent R&D project succeeded in meshing a fully detailed CAD model of a topsides module. This research was funded primarily by Total S.A., with engineering management and additional funding from offshore engineering firm DORIS Engineering, as well as from HydrOcean, a subsidiary of Bureau Veritas Marine & Offshore.

Content Dam Offshore Print Articles Volume 77 03 1703offcfd P01

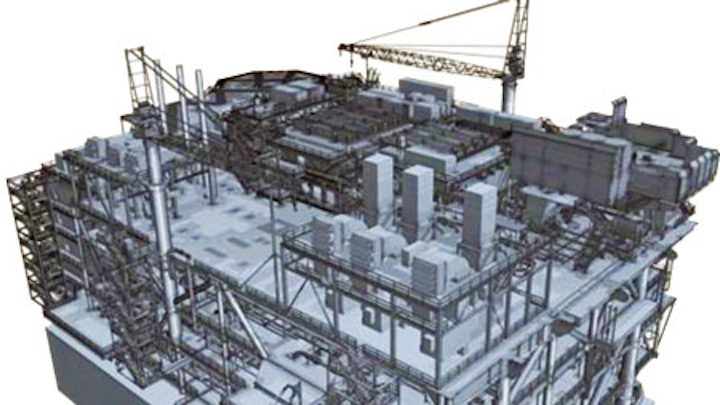

View of the full-featured CFD model. (All images courtesy HydrOcean)

Using this high-fidelity CFD model, HydrOcean investigated the effects of multiple wind angles on the platform, matching experimental data from wind tunnel and wave basin tests with wind generation capabilities to within 10% - and in most cases 3 to 5% - at a fraction of the cost.

The project was financed through the Collaborative & Innovative Technology Program in Exploration and Production of Hydrocarbons (CITEPH), a French national program that facilitates access to private funding of innovative R&D projects in oil and gas and related energy industries. This was the second of two CITEPH projects in which HydrOcean received funding from Total to develop and validate the use of numerical CFD technology (specifically STAR-CCM+), to compute wind loads on offshore platforms.

Wind Loads I

The CITEPH Wind Loads I project was completed in 2013 and was funded entirely by Total. In that project, HydrOcean used CFD to reproduce results of wind tunnel experiments that had been performed for a large FPSO unit offshore West Africa. The project successfully validated the use of CFD for such applications, and enabled engineers to identify the bias of experiments such as confinement, scale effects, and boundary layer effects.

Wind Loads II

With the use of CFD validated, the CITEPH Wind Loads II project was designed to push CFD to its limits. This project, again managed by HydrOcean, required finding ways of increasing the fidelity of both the physical models used in wind tunnel and wave basin testing, and the numerical CFD model.

Traditionally, in physical experiments used to assess wind loads over offshore structures, the detailed CAD model of the platform is simplified substantially in the process of creating a physical model for testing. Small pipes are replaced by porosity grids, while complex objects are replaced by boxes, cylinders or other simplified geometry. But in this project, the participants realized that contemporary 3D printing technology would make it feasible to produce physical models that reproduce all the details contained in the CAD model. Meanwhile, for numerical simulation, in theory, any kind of geometry can be captured with today’s CFD meshing tools.

1703offcfd P02
Flow simulation results using full-featured CFD model.

Hence, in this project, there were two parallel workgroups. On the experimental side was CSTB, the French national organization that provides research, testing, certification, and training for built-environment and construction industries. CSTB managed the wind tunnel testing for the project, while OCEANIDE, an offshore and coastal engineering firm, took charge of wind load experiments in wave basin testing.

Meanwhile, on the numerical side of the project, the goal was to take a 3D CAD model of the platform topsides provided by DORIS Engineering designed for other purposes (layout, MTO), and mesh it directly without having to suppress or correct any geometry details. After months of trial and error, HydrOcean succeeded in meshing this extremely complex 3D Rhino model using the surface wrapper in STAR-CCM+. This solution shrink-wraps a high-quality triangulated surface onto the geometry, closing holes, joining disconnected and overlapping surfaces, and automatically discards obsolete surfaces. The generated grids in this model had on average 140 million trimmed hexahedral cells.

In a joint effort with the Siemens PLM Software support team in France, HydrOcean found the correct parameters that provided good mesh quality (wrapper and volume mesh) and good numerical parameters for the simulation model. The ultimate goal was to prove the feasibility of bypassing the CAD cleaning phase and use the surface wrapper instead, and this was successfully demonstrated.

CFD results

Initially, HydrOcean simulated seven to eight wind heading angles, and the results for the forces were within 3 to 5% of experimental test data. Ultimately, the firm simulated 13 headings in all. In the largest divergence from test data, the simulation results differed by 10%.

Next, two levels of simplification were performed on the CFD model and the corresponding 3D printed model to assess the impact of each simplification on the measured wind loads and moments. In the first simplification exercise in the 3D printed model, small pipes were replaced with porosity grids and complex objects such as pumps and valves were replaced with boxes, cylinders or other simplified shapes - typical of industry-standard practice at present. In the second, more drastic simplification, the entire platform geometry was replaced by a simple box shape. The resulting geometries were simulated numerically and also tested physically in the wind tunnel.

1703offcfd P03
Fully-featured 3D printed model used in wind tunnel and wave-basin testing.

Both levels of simplifications compared well for the wind load forces. Simulation results differed 5 to 10% from experimental results for the first level of simplification, and 8 to 15% for the second level. For the moment, however, it was harder to obtain a match, mainly for the most simplified geometry. For the most highly detailed geometry, simulation results were within 4 to 8% in an average of the test results.

No comparisons were made for the first level of simplification. For the second (most extreme) level of simplification, simulation results were within 4 to 6% in an average of the experimental results.

CFD model preparation

One key interest of project funders Total and DORIS Engineering was to learn whether preparation of CFD models from 3D CAD files could be made as straightforward as the process of converting 3D CAD files into STL files for 3D printing. From extensive prior experience using CAD data to create physical models for wind tunnel testing, the companies knew that this process - although requiring some simplification of the CAD model - is nonetheless much more straightforward than the labor-intensive geometry simplification and de-featuring traditionally required for CFD model preparation. Their goal, says HydrOcean, was to develop a comparable approach for CFD.

The 3D CAD model that HydrOcean received from DORIS Engineering in Rhino format was clean and had been developed for purposes other than CFD modeling (layout, MTO, etc). However, it presented some features which made it difficult to mesh for a CFD analysis. These features included multiple disconnected surfaces and elements, and very high levels of geometric detail.

Initially, the Siemens PLM support team suggested that HydrOcean split the model into multiple boxed regions, perform a local wrapping of each box, then perform a single wrapping operation to merge all the boxes. But HydrOcean decided that approach would require an unrealistic amount of time and labor, and would not be the industrially feasible method sought by Total and DORIS.

1703offcfd P04

Instead, a decision was made to invest time and research in finding a way to apply the surface wrapper tool to accomplish meshing of the entire geometry in a single process, without splitting the geometry and significant loss of detail. The majority of time was spent on finding how to create a wrapped surface that could generate a good volume mesh. The quality of the simulation solution, as confirmed by comparison with experimental data, will be the confirmation of a good wrapping setting and methodology.

Initially, the solution did not converge. Upon closer examination, the simulation model showed some areas of high-pressure, high-velocity profiles and other results that revealed some regions of the volume mesh were not of high quality. The analysis indicated that these results were caused by the wrapper, so the next step was to explore how to adjust the wrapping process to create a volume mesh that would yield a simulation that converged.

Over some 15 iterations, numerous surface parameters were varied, seeking to find the best connection among elements while avoiding such things as suboptimal triangulation areas in the mesh. In the end, it found surface parameter settings that yielded simulation results that in all instances were within 10% of experimental values.

The end result of these efforts was the delivery of an industrially feasible CFD simulation approach by HydroOcean for full-scale, high fidelity, fully featured offshore platform modeling. In the future, the STAR-CCM+ solution should be able to lower prototype and testing costs in the industry.
